For many applications:
For crushing bones (fish, chicken, sheep, cow), fresh, dry or frozen bones
Shredding wool for making wool pellet fertilizer
Plastic, nylon and rubber shredding
And much more...

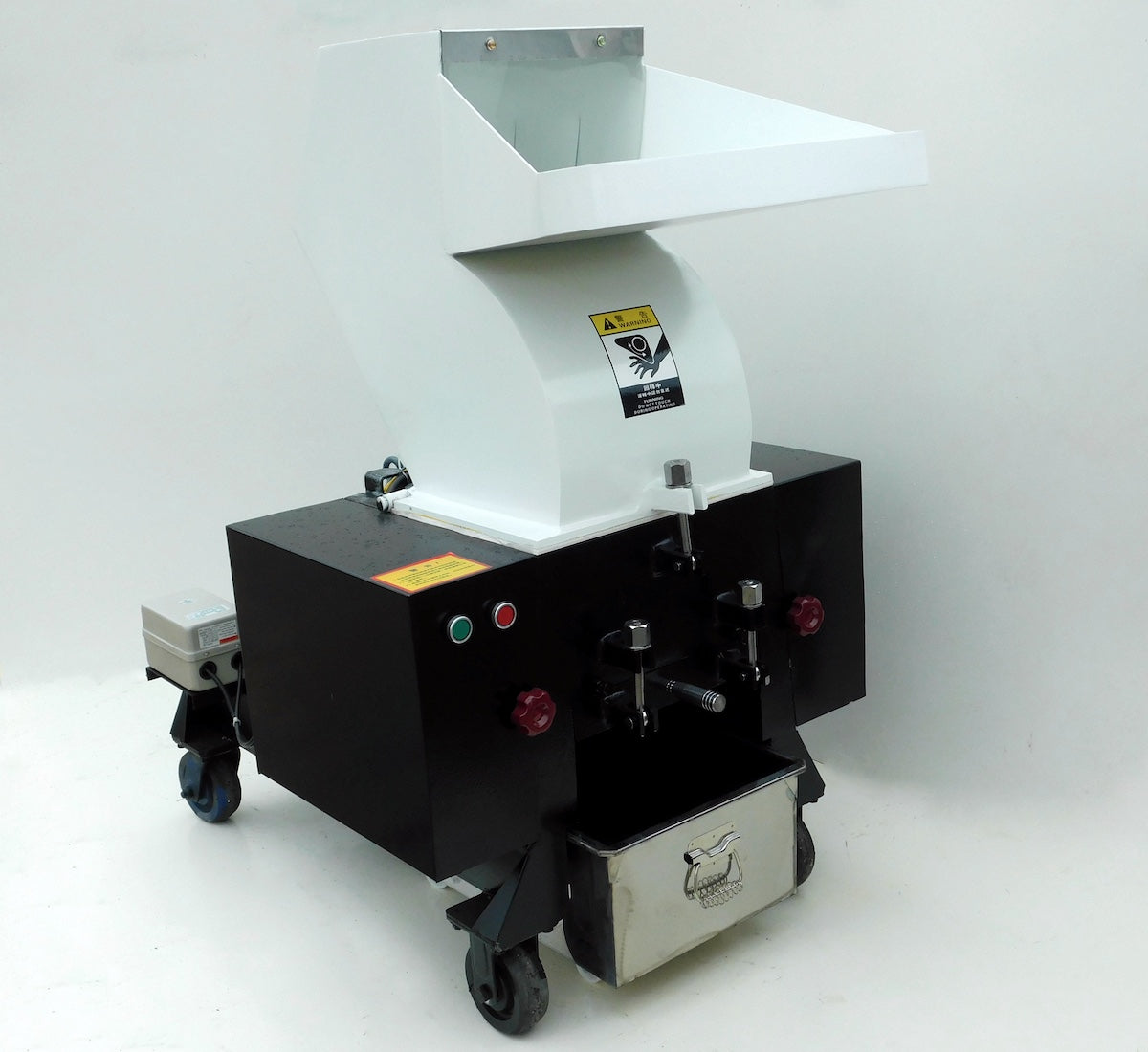

5.5KW MODEL

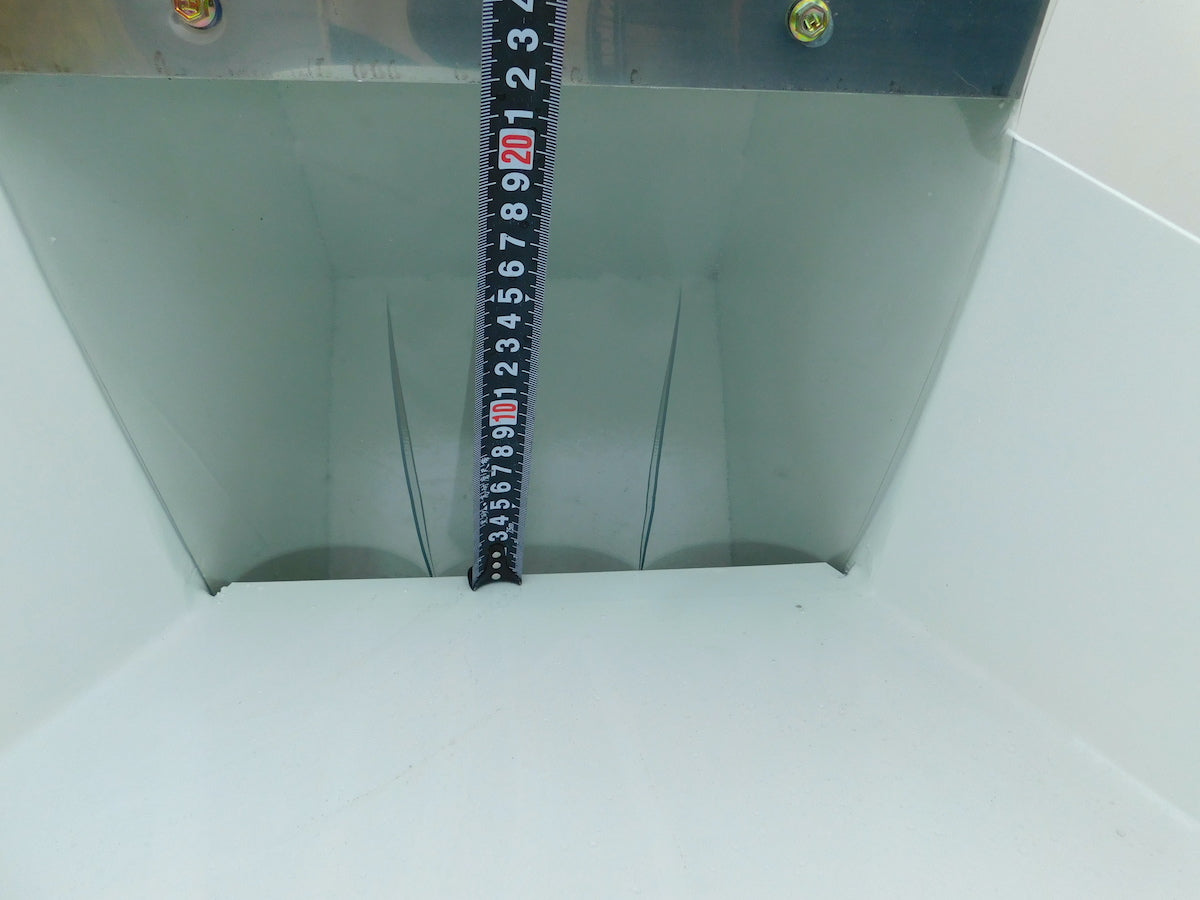

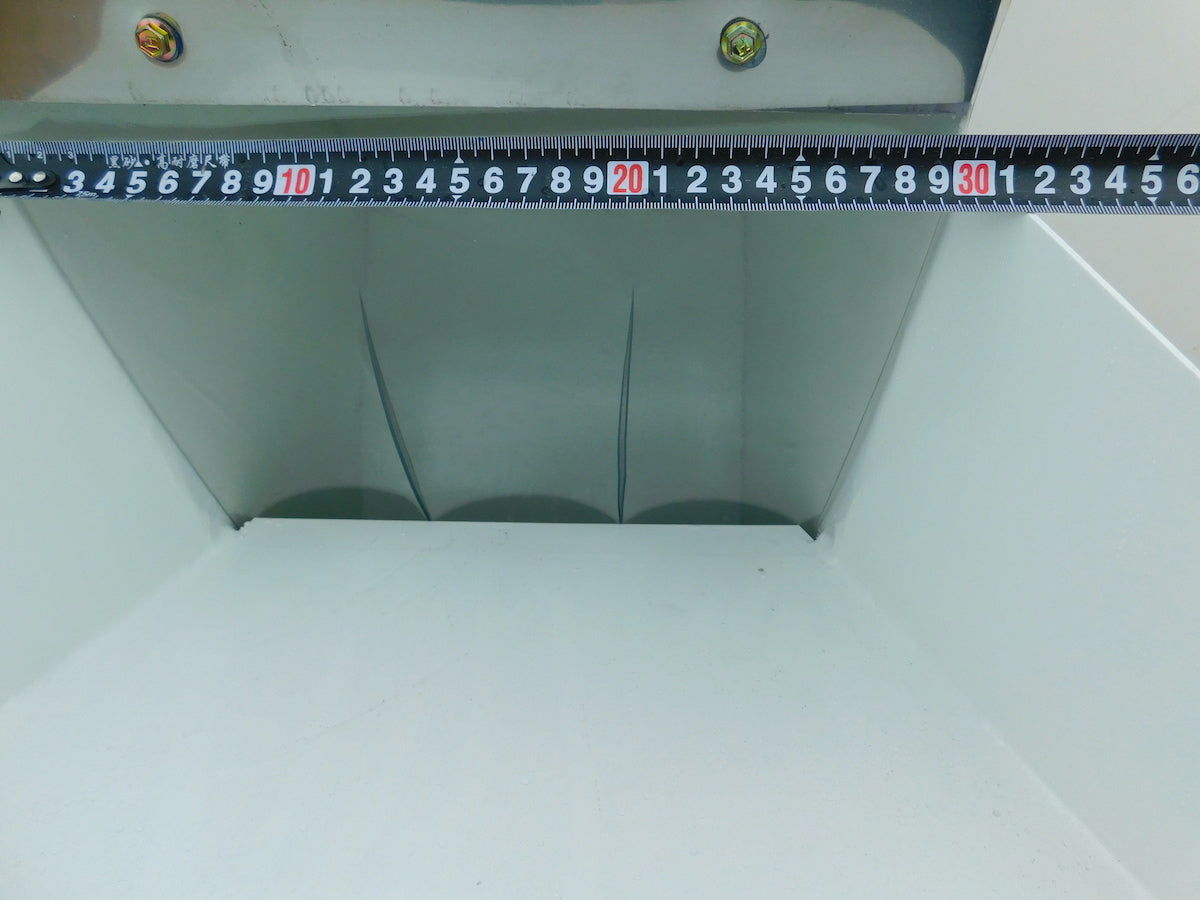

Feed inlet size: 310 * 210mm
Material: Carbon Steel
Material thickness: 4-50mm
Output: 80-200kg/h

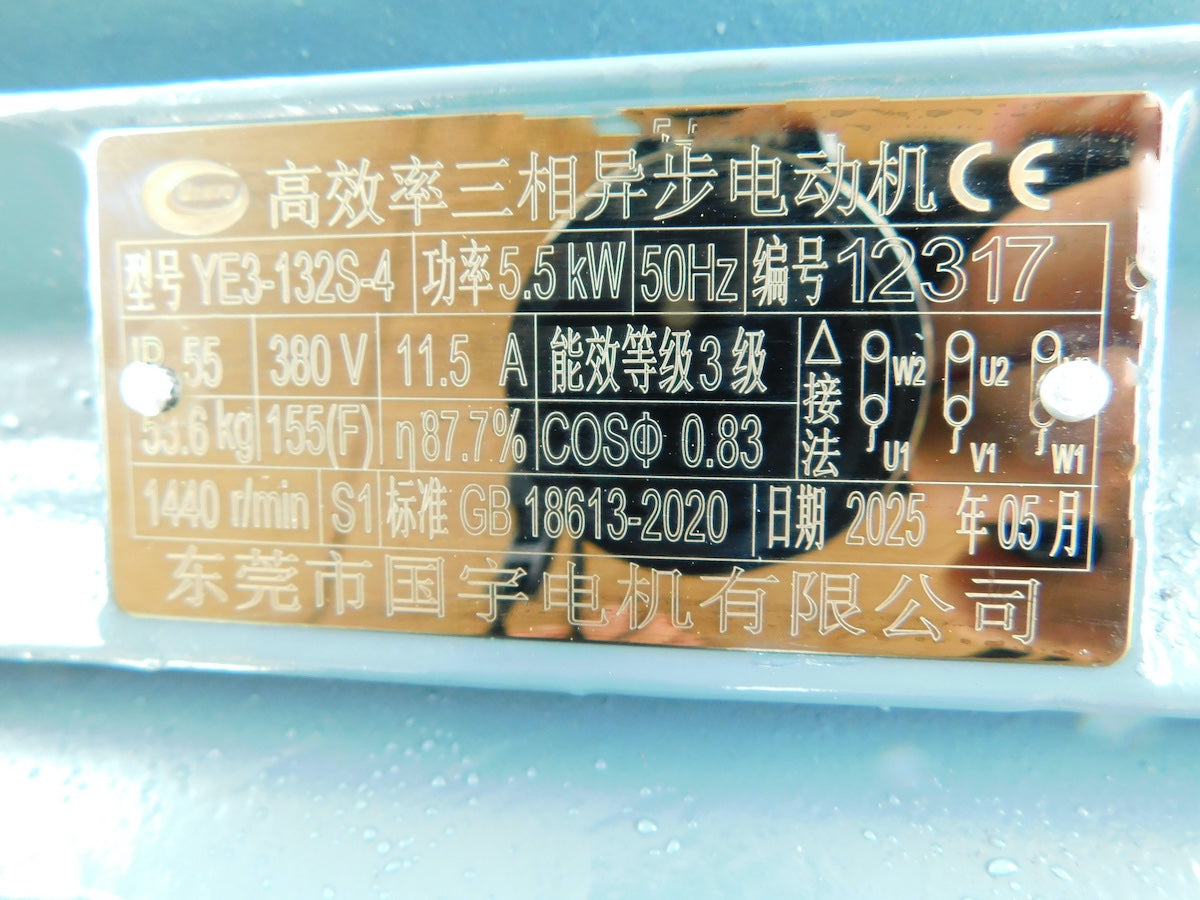

Motor power: 5.5KW 11.5Amp
Power supply voltage: Three-phase 380v

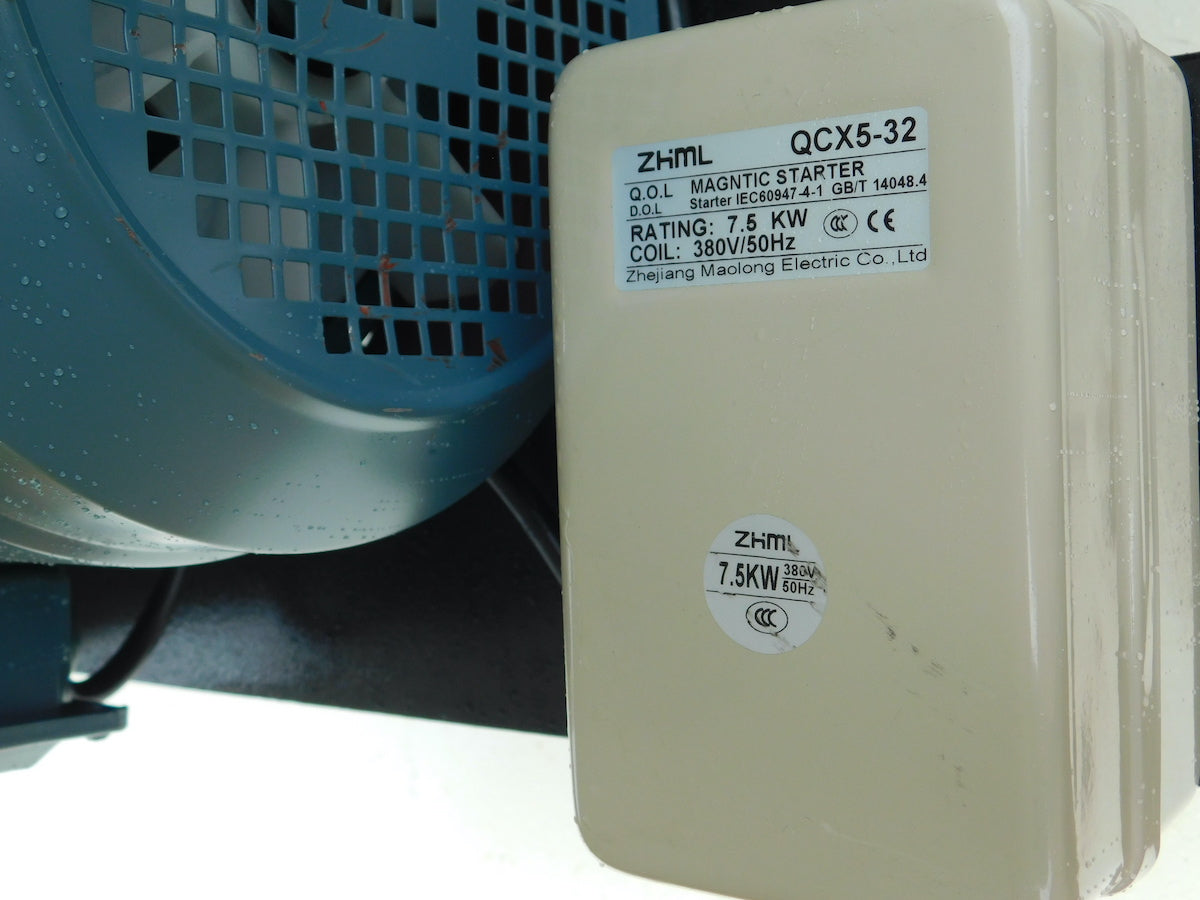

Safety Magnetic start

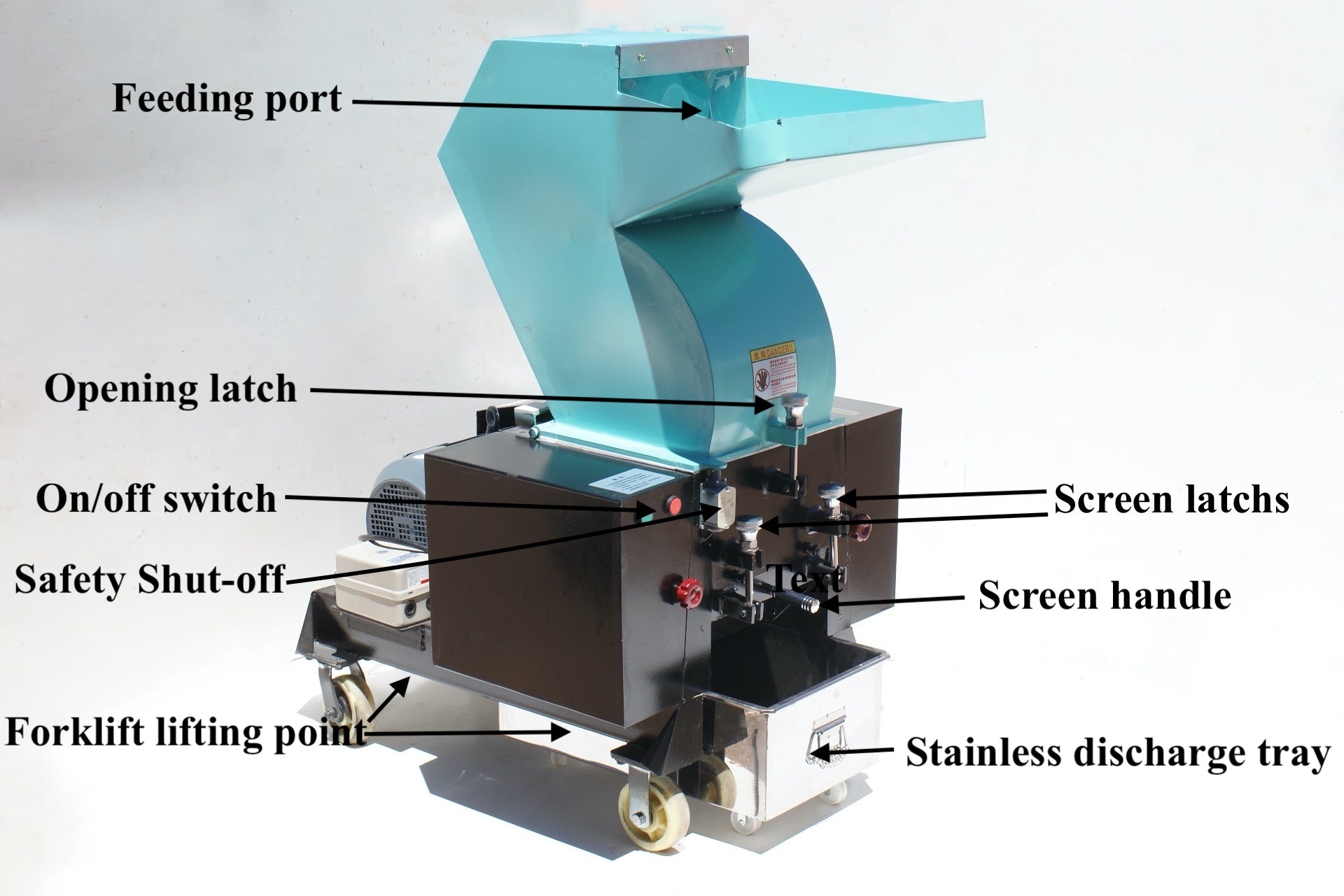

Equipped with safety sensor switch to prevent operation when lid is open
*This machine has a high starting point, we recommend using a soft start device.
Motor speed: 1440 rpm
Blade speed: 750 rpm
Safety cut-off switch when the chamber lid is open
Number of moving knives: 9 pieces
Fixed blade quantity: 2 pieces
Overall weight: 340kg
Sieve: 30mm or 35mm please choose
Package Size：1250*736*974mm
Machine comes without plug and cable
Available separately plug and cable in different lengths. (Ask for quote)
Also available 3KW model in 220V Single phase and 4KW model 380V Three phase
Machine comes fully assembled ready to use. Simple operation, no manual instruction.
Note:
- When Starting The Machine, The Chamber Must Be Empty.
- When Finishing, Run The Machine Empty Until All Material Comes Out.
Ask for shipping quote, or pick up from Eudunda area SA.
