Our flexible auger is used for transporting dry material, grain, seeds, legumes and any other similar granules etc. Also, sand, dry cement..

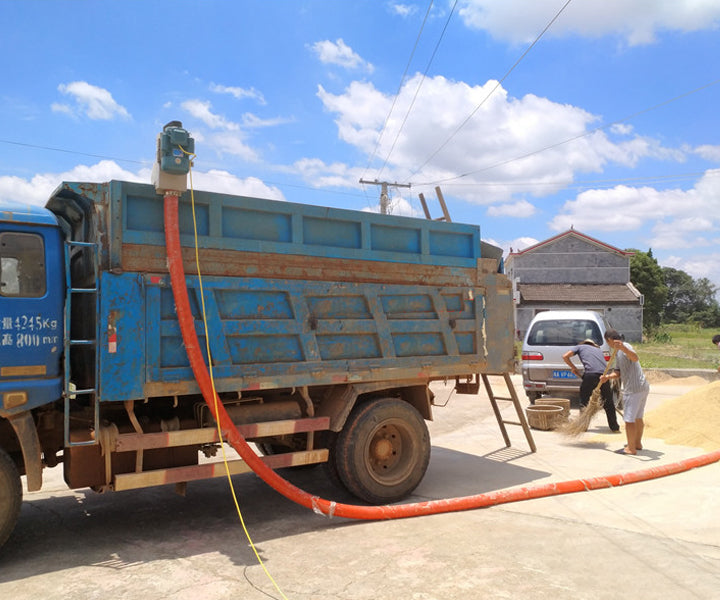

Can be mounted for truck loading, bag filling and grain elevating purpose. Small size and easy to maneuver. Can be bent to suit various situations.
Used on hobby farms, building sites, silos filling, chemical plants and more...
This method of transferring dry bulk solids from one point to another, is versatile and cost effective.

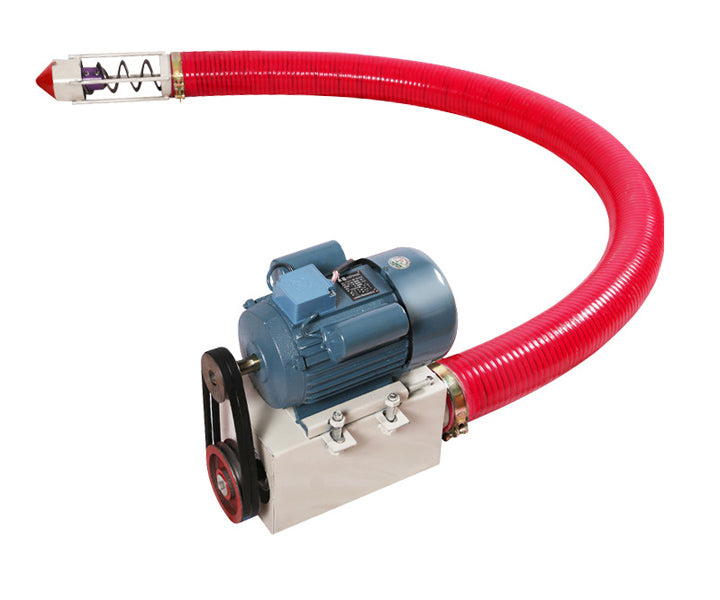

Belt driven by two belts.
Available Sizes:
4M 100mm 220v Single phase 2.2kw
5M 100mm 380v Three Phase 2.2kw
6M 100mm 380v Three Phase 2.2kw
8M 100mm 380V Tree Phase 3kw
10M 100mm 380v Three Phase 3kw
4M 120mm 220v Single phase 3kw
5M 120mm 380v three phase 3kw
6M 120mm 380v three phase 3kw
6M 120mm 220V Single phase 3kw
8M 120mm 220V Single Phase 3Kw
8M 120mm 380v three phase 3kw
10M 120mm 380v three phase 3kw
12M 120mm 380v three phase 4kw (In two sections 7M + 5M with Connecting motor between)
13M 120mm 380v three phase 4kw (In two sections 7M + 6M with Connecting motor between)
14M 120mm 380v three phase 4kw (In two sections 8M + 6M with Connecting motor between)
16M 120mm 380v three phase 4kw (In two sections 9M + 7M with Connecting motor between)
16M 100mm 220V Single Phase
Current: Single phase 18.6Amp/Three phase 3kw 6.8- 4kw 8.8Amp
Speed Single phase 1400rpm/ Three phase 1440rpm
*All lengths can have a difference of up to 30cm. Please consider it when you calculate the length you need.
*Diameter is measured on the outside, and may have an error of up to 3cm.
*Plug and cable is not supplied
*Colours of inlet and outlet will be sent randomly, black or white.
Disclaimer: All products are Brand New, but may have scratches, dents, surface rust, rough finishes or other imperfections. That do not effect the operation.
